plot_hdf5 Namespace Reference

Functions
def	verify_hdf5 (hdf5, frame_i=100, cell_i=0, ofdm_sym_i=0, ant_i=0, user_i=0, ul_sf_i=0, subcarrier_i=10, offset=-1, dn_calib_offset=0, up_calib_offset=0, thresh=0.001, deep_inspect=False, corr_thresh=0.00, exclude_bs_nodes=[], demodulate=False)
def	analyze_hdf5 (hdf5, frame_i=10, cell_i=0, subcarrier_i=7, offset=-1, zoom=0, pl=0)
def	compute_legacy (hdf5)
def	show_plot (cmpx_pilots, lts_seq_orig, match_filt, ref_user, ref_ant, ref_frame, frm_st_idx)
def	pilot_finder (samples, pilot_type, flip=False, pilot_seq=[], seq_length=64, cp=0)
def	main ()

Detailed Description

 plot_hdf5.py

 Plotting from HDF5 file
 Script to analyze recorded hdf5 file from channel sounding (see Sounder/).
 Usage format is:
    ./plot_hdf5.py <hdf5_file_name>

 Example:
    ./plot_hdf5.py ../Sounder/logs/test-hdf5.py


---------------------------------------------------------------------
 Copyright © 2018-2020. Rice University.
 RENEW OPEN SOURCE LICENSE: http://renew-wireless.org/license
---------------------------------------------------------------------

Function Documentation

analyze_hdf5()

def plot_hdf5.analyze_hdf5	(		hdf5,
			frame_i = 10,
			cell_i = 0,
			subcarrier_i = 7,
			offset = -1,
			zoom = 0,
			pl = 0
	)

Calculates and plots achievable rates from hdf5 traces

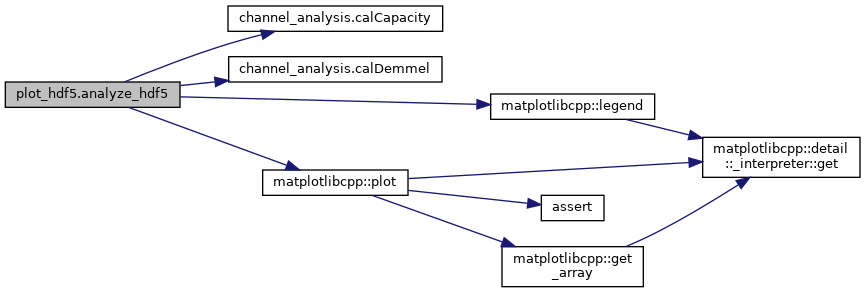

Here is the call graph for this function:

Here is the caller graph for this function:

compute_legacy()

def plot_hdf5.compute_legacy

(

hdf5

)

Parse and plot data from legacy files

Here is the call graph for this function:

Here is the caller graph for this function:

main()

def plot_hdf5.main

(

)

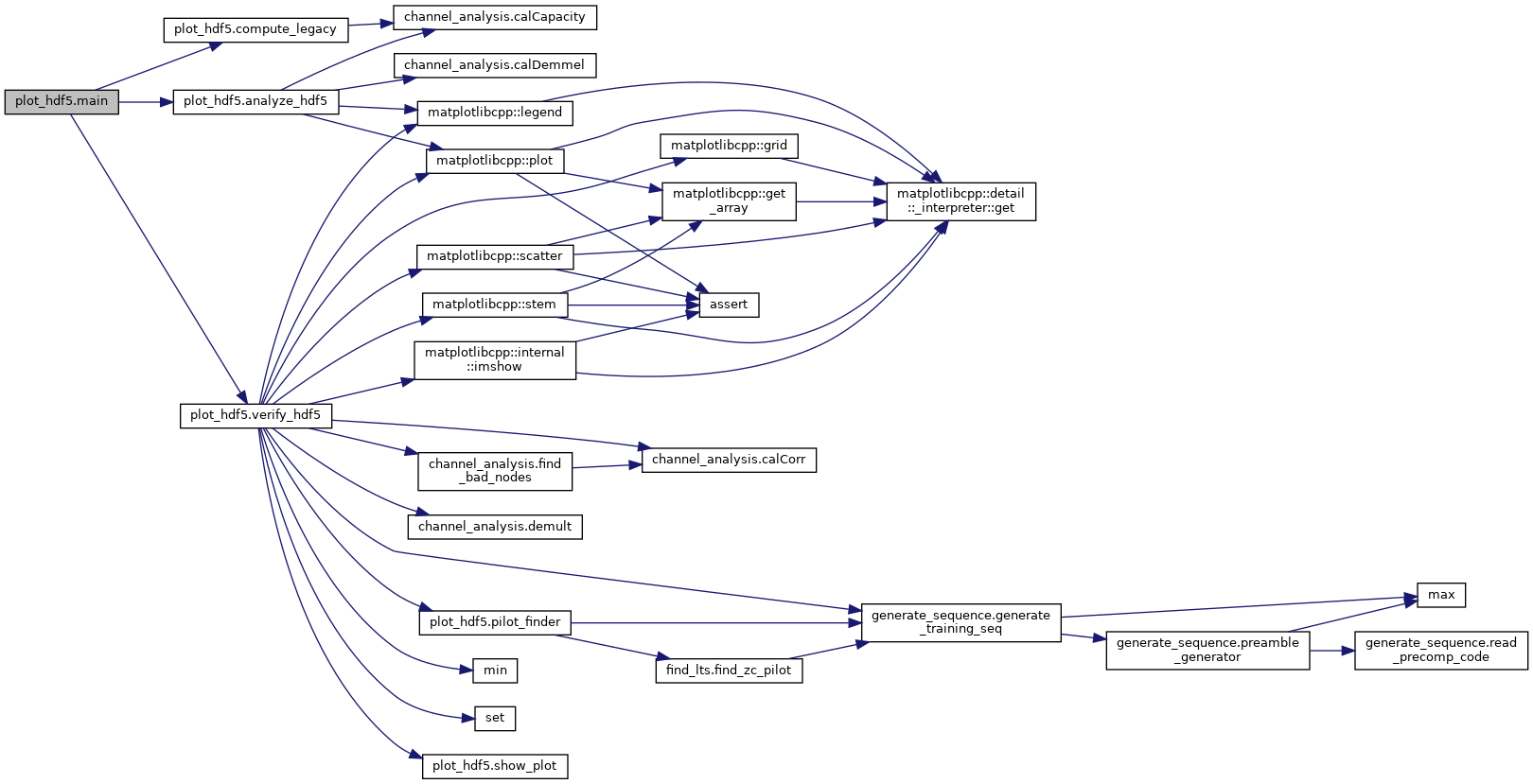

Here is the call graph for this function:

pilot_finder()

def plot_hdf5.pilot_finder	(		samples,
			pilot_type,
			flip = False,
			pilot_seq = [],
			seq_length = 64,
			cp = 0
	)

Find pilots from clients to each of the base station antennas

Input:
    samples    - Raw samples from pilots and data.
                 Dimensions: vector [1 x num samples]
    pilot_type - Type of TX pilot (e.g., 802.11 LTS)
    flip       - Needed for finding LTS function

Output:
    pilot     - Received pilot (from multiple clients)
    tx_pilot  - Transmitted pilot (same pilot sent by all clients)

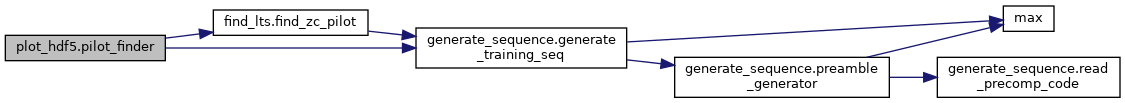

Here is the call graph for this function:

Here is the caller graph for this function:

show_plot()

def plot_hdf5.show_plot	(		cmpx_pilots,
			lts_seq_orig,
			match_filt,
			ref_user,
			ref_ant,
			ref_frame,
			frm_st_idx
	)

Plot channel analysis

Here is the caller graph for this function:

verify_hdf5()

def plot_hdf5.verify_hdf5	(		hdf5,
			frame_i = 100,
			cell_i = 0,
			ofdm_sym_i = 0,
			ant_i = 0,
			user_i = 0,
			ul_sf_i = 0,
			subcarrier_i = 10,
			offset = -1,
			dn_calib_offset = 0,
			up_calib_offset = 0,
			thresh = 0.001,
			deep_inspect = False,
			corr_thresh = 0.00,
			exclude_bs_nodes = [],
			demodulate = False
	)

Plot data in the hdf5 file to verify contents.

Args:
    hdf5: An hdf5_lib object.
    frame_i: The index of the frame to be plotted.
    cell_i: The index of the hub where base station is connected.
    ofdm_sym_i: The index of the reference ofdm symbol in a pilot.
    ant_i: The index of the reference base station antenna.
    user_i: The index of the reference user.

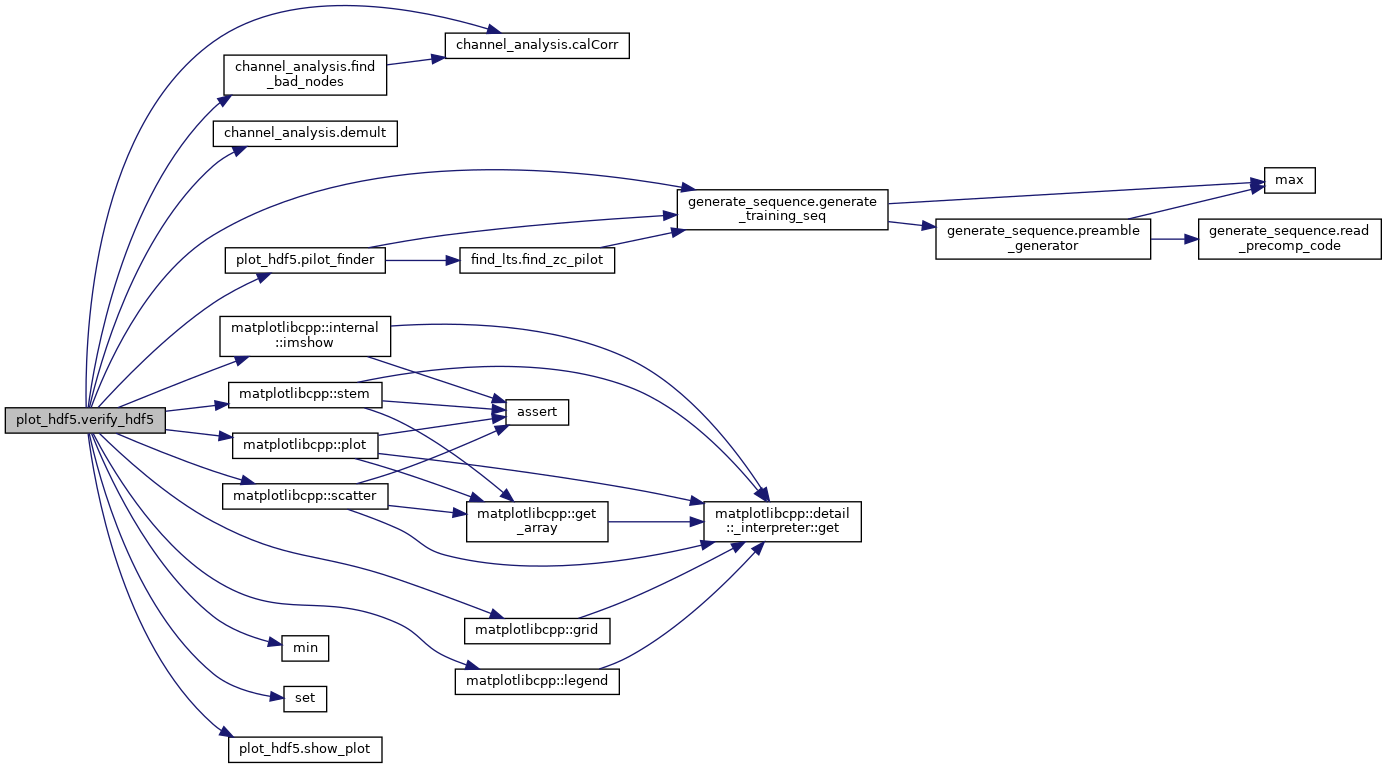

Here is the call graph for this function:
