digital_rssi Namespace Reference

Functions
def	setUpDigitalRssiMode (sdr)
def	getDigitalRSSI (sdr, agc_avg)
def	main ()

Detailed Description

 digital_rssi.py

 Read Digital RSSI values computed by LMS7

---------------------------------------------------------------------
 Copyright © 2018-2019. Rice University.
 RENEW OPEN SOURCE LICENSE: http://renew-wireless.org/license
---------------------------------------------------------------------

Function Documentation

getDigitalRSSI()

def digital_rssi.getDigitalRSSI	(		sdr,
			agc_avg
	)

    Read the digital RSSI registers (18-bits total)
    agc_avg: NO LONGER NEEDED - Should be a value between 0 and 7. The system takes a window of 2^(agc_avg+7) samples
    Return: digital RSSI value and Power in dBm

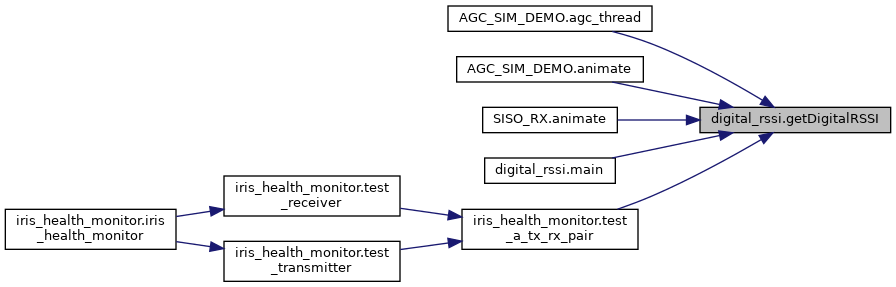

Here is the caller graph for this function:

main()

def digital_rssi.main

(

)

Here is the call graph for this function:

setUpDigitalRssiMode()

def digital_rssi.setUpDigitalRssiMode

(

sdr

)

    Setup to enable digital RSSI readings

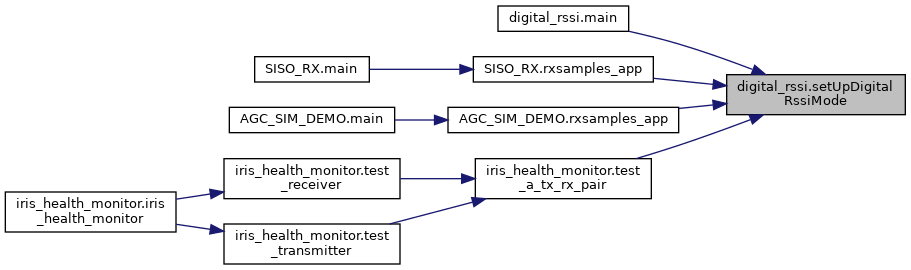

Here is the caller graph for this function:
