Functions
def	print_thread (sdr, info)
	Functions #. More...

def	siggen_app (args, rate, ampl, ant, gain, freq, bbfreq, waveFreq, numSamps, serial, sigType, lo_tone)

def	signal_handler (signal, frame)

def	main ()
	Main #. More...

Variables
	sdr = None
	Global Parameters #. More...

bool	running = True

	txStream = None

Detailed Description

 SISO_TX.py

 Simple transmitter. Generate signal and transmit it from one of the
 antennas in the Iris Board.
 Supported signal types:
   LTE, WiFi LTS, WiFi STS, Sine

 Usage example: python3 SISO_TX.py --serial="RF3C000047"

  NOTE ON GAINS:
  Gain settings will vary depending on RF frontend board being used
  If using CBRS:
  gain: at 2.5GHz [16:1:81], at 3.6GHz [15:1:81]

  If using only Dev Board:
  gain: at both frequency bands [0:1:42]

---------------------------------------------------------------------
 Copyright © 2018-2019. Rice University.
 RENEW OPEN SOURCE LICENSE: http://renew-wireless.org/license
---------------------------------------------------------------------

Function Documentation

◆ main()

def SISO_TX.main ( )

Main #.

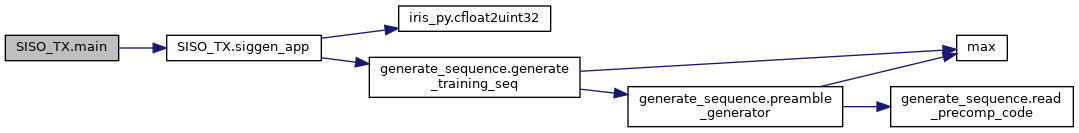

Here is the call graph for this function:

◆ print_thread()

def SISO_TX.print_thread	(	sdr,
		info
	)

Functions #.

Continuously print sensor information

◆ siggen_app()

def SISO_TX.siggen_app	(	args,
		rate,
		ampl,
		ant,
		gain,
		freq,
		bbfreq,
		waveFreq,
		numSamps,
		serial,
		sigType,
		lo_tone
	)

Generate signal and write stream to RAM for TX

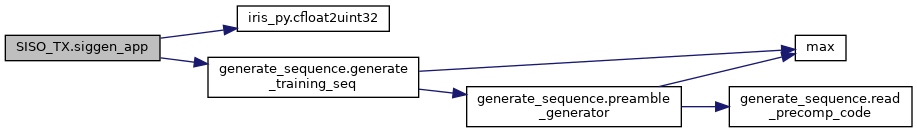

Here is the call graph for this function:

Here is the caller graph for this function:

◆ signal_handler()

def SISO_TX.signal_handler	(	signal,
		frame
	)

Variable Documentation

◆ running

bool SISO_TX.running = True

◆ sdr

SISO_TX.sdr = None

Global Parameters #.

◆ txStream

SISO_TX.txStream = None
