NB_CAL_DEMO Namespace Reference

Functions
def	signal_handler (signum, frame)
def	calibrate_array (hub_serial, serials, ref_serial, rate, freq, txgain, rxgain, numSamps, prefix_pad, postfix_pad, second_channel)
def	main ()

Variables
bool	running = True

Detailed Description

    NB_CAL_DEMO.py

    NOTE: IRIS BOARDS MUST BE CHAINED FOR THIS SCRIPT TO WORK.
    ORDER MATTERS; FIRST NON-REF BOARD (SERIALS) IS THE ONE SENDING THE TRIGGER.

    This script is used for watching the recprocity amplitude and phases of
    narrow-band (sine) signals between all boards and a reference board.
    The reference board will be the first serial that appears in the bs_serials.txt
    file.
    It programs two Irises in TDD mode with the a framing schedule.

    Example:
        python3 NB_CAL_DEMO.py --serials=../IrisUtils/data_in/bs_serials.txt

    where "xxxx" is the serial number of an Iris node in the base station.

---------------------------------------------------------------------
 Copyright © 2018-2019. Rice University.
 RENEW OPEN SOURCE LICENSE: http://renew-wireless.org/license
---------------------------------------------------------------------

Function Documentation

calibrate_array()

def NB_CAL_DEMO.calibrate_array	(		hub_serial,
			serials,
			ref_serial,
			rate,
			freq,
			txgain,
			rxgain,
			numSamps,
			prefix_pad,
			postfix_pad,
			second_channel
	)

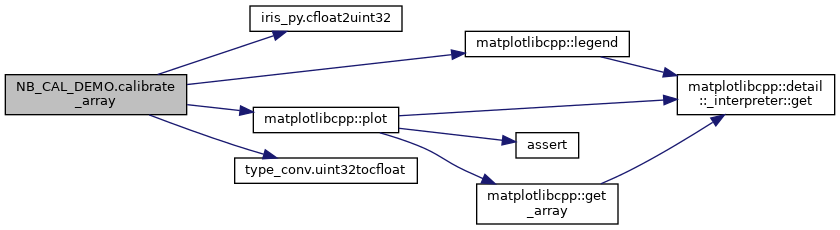

Here is the call graph for this function:

Here is the caller graph for this function:

main()

def NB_CAL_DEMO.main

(

)

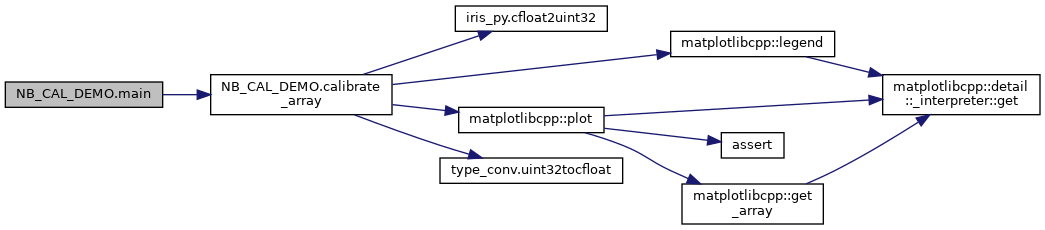

Here is the call graph for this function:

signal_handler()

def NB_CAL_DEMO.signal_handler	(		signum,
			frame
	)

Variable Documentation

running

bool NB_CAL_DEMO.running = True
