BEACON_SWEEP Namespace Reference

Functions
def	beamsweeper (hub, serials, rate, freq, txgain, rxgain, numSamps, numSyms, prefix_length, postfix_length, calibrate, both_channels)
def	signal_handler (rate, numSyms, signal, frame)
def	main ()

Variables
	sdrs = None
	hub_dev = None

Detailed Description

   BEACON_SWEEP.py

   Generate beacon and precode signal in order to create a beamsweep.
   Beacon can ONLY be generated by base station boards (not clients).
   This script deals only with the Transmitter side, that is, only
   generates and transmits the beacons. A receiver scripts such as
   SISO_RX.py can be used on the receiver (client), concurrently.

   Usage example:
  python3 BEACON_SWEEP.py --serials="xxxx","yyyy"

   where "xxxx" and "yyyy" are the serials of two Iris boards
   on the base station
   (NOTICE THERE'S NO SPACES BETWEEN SERIAL NUMBERS!)


NOTE ON GAINS:
Gain settings will vary depending on RF frontend board being used
If using CBRS:
rxgain: at 2.5GHz [3:1:105], at 3.6GHz [3:1:102]
txgain: at 2.5GHz [16:1:81], at 3.6GHz [15:1:81]

If using only Dev Board:
rxgain: at both frequency bands [0:1:30]
txgain: at both frequency bands [0:1:42]

---------------------------------------------------------------------
 Copyright © 2018-2019. Rice University.
 RENEW OPEN SOURCE LICENSE: http://renew-wireless.org/license
---------------------------------------------------------------------

Function Documentation

beamsweeper()

def BEACON_SWEEP.beamsweeper	(		hub,
			serials,
			rate,
			freq,
			txgain,
			rxgain,
			numSamps,
			numSyms,
			prefix_length,
			postfix_length,
			calibrate,
			both_channels
	)

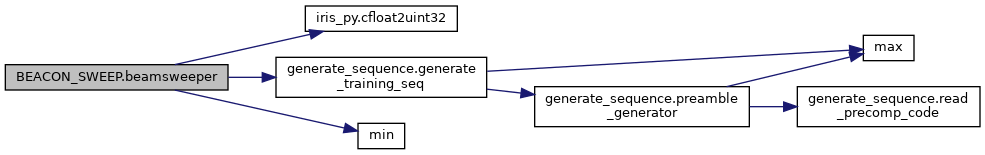

Here is the call graph for this function:

Here is the caller graph for this function:

main()

def BEACON_SWEEP.main

(

)

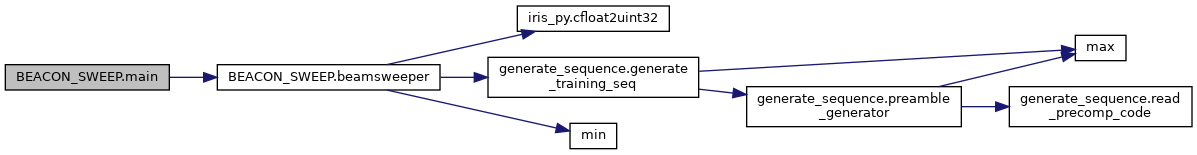

Here is the call graph for this function:

signal_handler()

def BEACON_SWEEP.signal_handler	(		rate,
			numSyms,
			signal,
			frame
	)

Variable Documentation

hub_dev

BEACON_SWEEP.hub_dev = None

sdrs

BEACON_SWEEP.sdrs = None
